Integrated encoders enhance your linear motion applications with feedback information

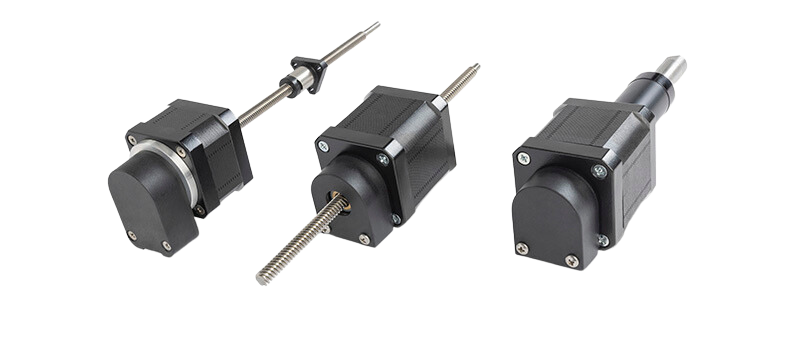

Imagine how useful it would be to monitor speed, direction, distance and position for your linear motion applications. These benefits can be easily realized with the simple integration of encoders into any Thomson stepper motor linear actuator configuration (MLS, MLN or MLA). Encoders, which are seamlessly pre-assembled onto the rear of motors, translate rotary motion into a digital signal to deliver real-time feedback information.
Countless industries benefit from encoder technology – from mission-critical machines in the most rugged environments to routine workplace devices that demand uncompromising repeatability.
|
可用配置 |
|
|
|
|
|
、電機規格 |
CPR |
索引 |
輸出 |
編碼器型號 |
|
NEMA 8 |
100, 108, 120, 125, 128, 144, 200, 248, 250, 256, 296, 300, 360, 400, 500, 512, 720, 800, 1000 |
無索引 |
單端 |
E4T |
|
NEMA 11, 14, 17 |
32*, 50, 96, 100, 120*, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000**, 2048**, 2500**, 4000**, 4096**, 5000** |
索引或無索引 |
單端 |
E2 |
|
32*, 50, 96, 100, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000**, 2048**, 2500**, 4000**, 4096**, 5000** |
單端或差分 |
E5 |
||
|
NEMA 17, 23 |
64*, 100, 200, 400, 500, 512, 1000, 1024, 1800, 2000, 2048, 2500, 3600**, 4000**, 4096**, 5000**, 7200**, 8000**, 8192**, 10000** |
索引或無索引 |
單端 |
E3 |
|
64*, 100, 200, 400, 500, 512, 800**, 1000, 1024, 1800, 2000, 2048, 2500, 3600**, 4000**, 4096**, 5000**, 7200**, 8000**, 8192**, 10000** |
單端或差分 |
E6 |
||
|
*僅提供無索引的CPR |
|
|
|
|
|
**僅提供帶索引的CPR |
|
|
|
|
